TIC 467474053

TYC 3982-00755-1 · Gaia DR3 2001807428293570816 · 2MASS J22260958+5338543

Position: 22h 26m 09.59s, +53° 38′ 54.3″
V magnitude: 12.06
Where: 89 arcmin southeast of V345 Lac, in the 1.50° ring
Signal: EA candidate, primary and secondary, 3.32 days. Primary about 0.19 mag, down to 84 percent of the light. Secondary about 3.2 percent, at phase 0.5.

What TESS shows

Forty-one primary minima in sectors 16, 17, 56, 57, 83, and 84 give

Min I = BTJD 1741.12066 + 3.316988 E

The deep minimum falls to 84 percent of the light, 0.19 mag, and lasts about 4 hours. A shallower minimum, about 3.2 percent, falls at phase 0.5. The times scatter by 4.6 minutes rms. The largest residual is 18 minutes. Neighbors inside an arcminute are V = 14.5 or fainter. A star 114 arcsec away, TIC 467473916, stays at full light. The note is not a VSX submission. It waits while TIC 330739083 is the one star in review.

The light curves

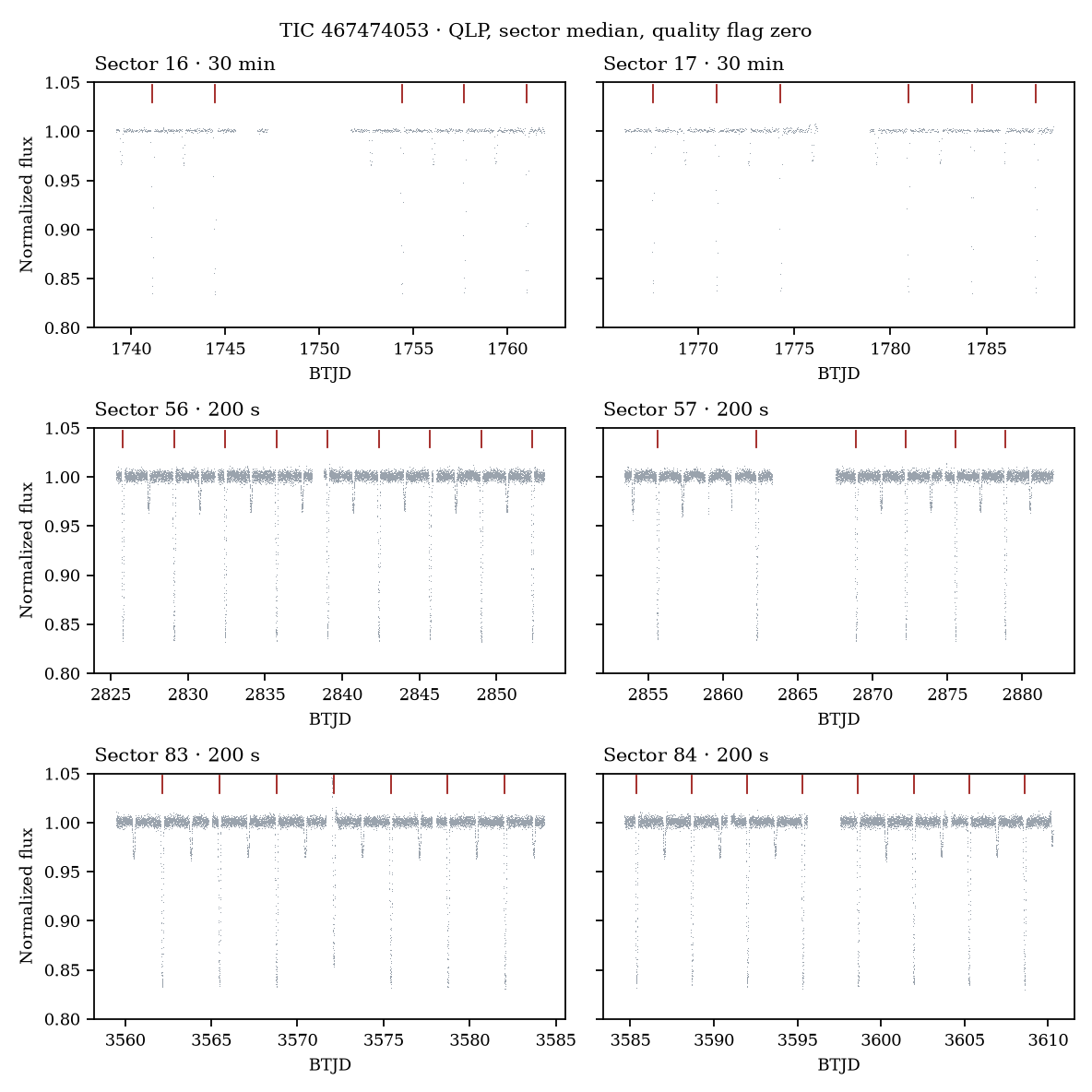

Six TESS sectors. Red ticks are the deep minima.

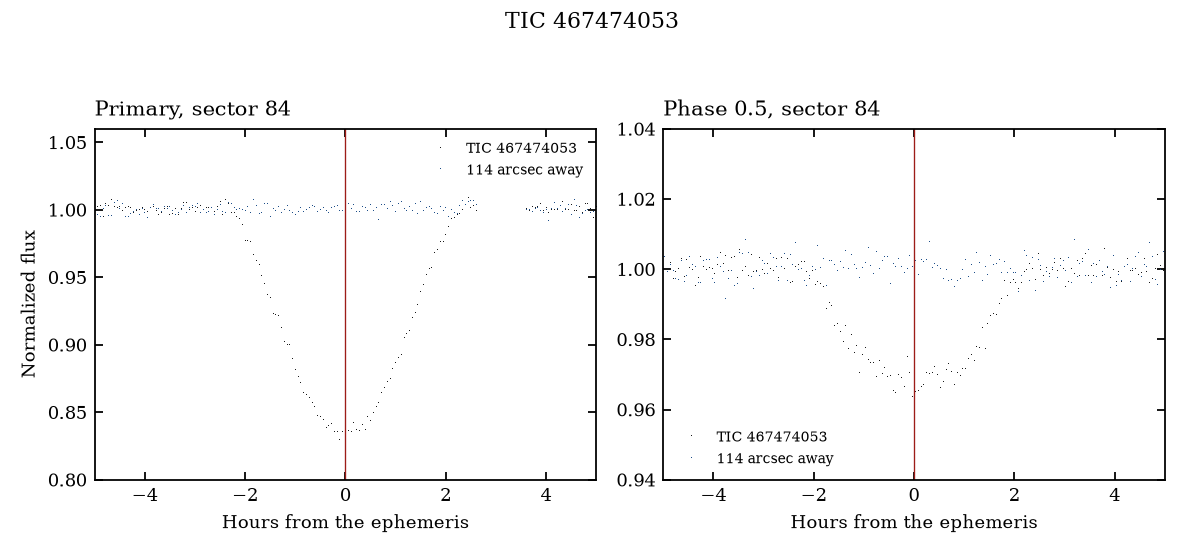

One deep minimum and the phase-0.5 minimum in sector 84. Blue is a star 114 arcsec away, at full light.

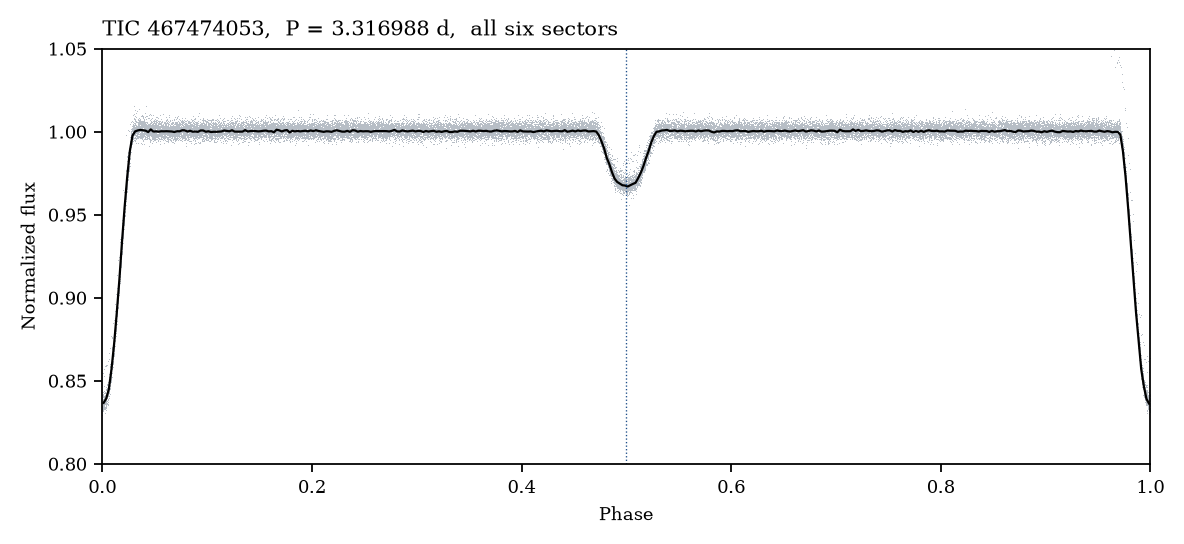

All six sectors folded on the 3.31699-day period. The deep minimum is at phase 0. The shallow minimum is at phase 0.5.

Finder chart

Real sky images (DSS2 red) with Gaia DR3 stars overlaid. North is up, east is left, J2000. Red tick marks point at the target (Gaia DR3 2001807428293570816, G = 11.99). Gold squares C1 to C5 are comparison stars of similar brightness. Tap an image for the full-size printable chart.

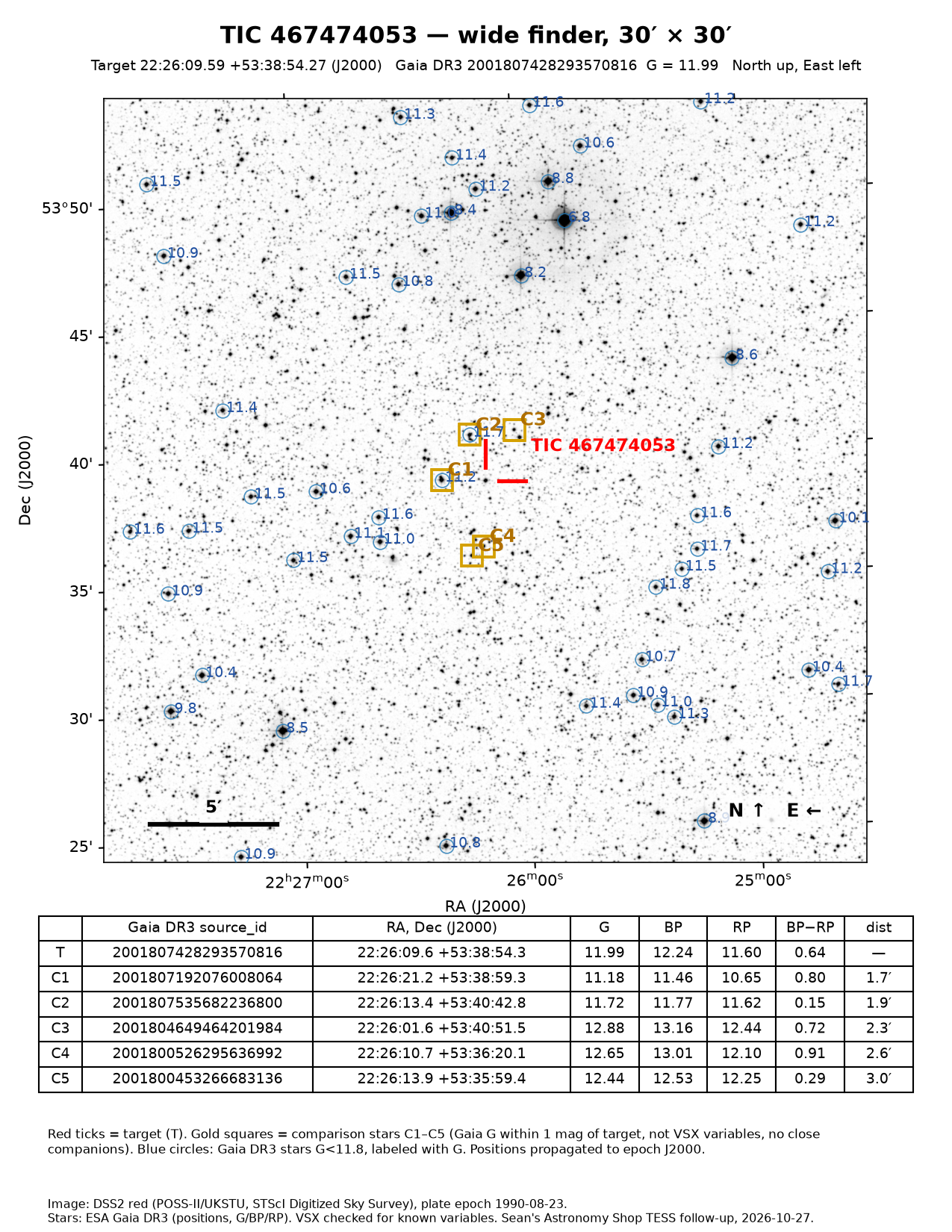

Wide finder, 30 × 30 arcmin, for star-hopping.

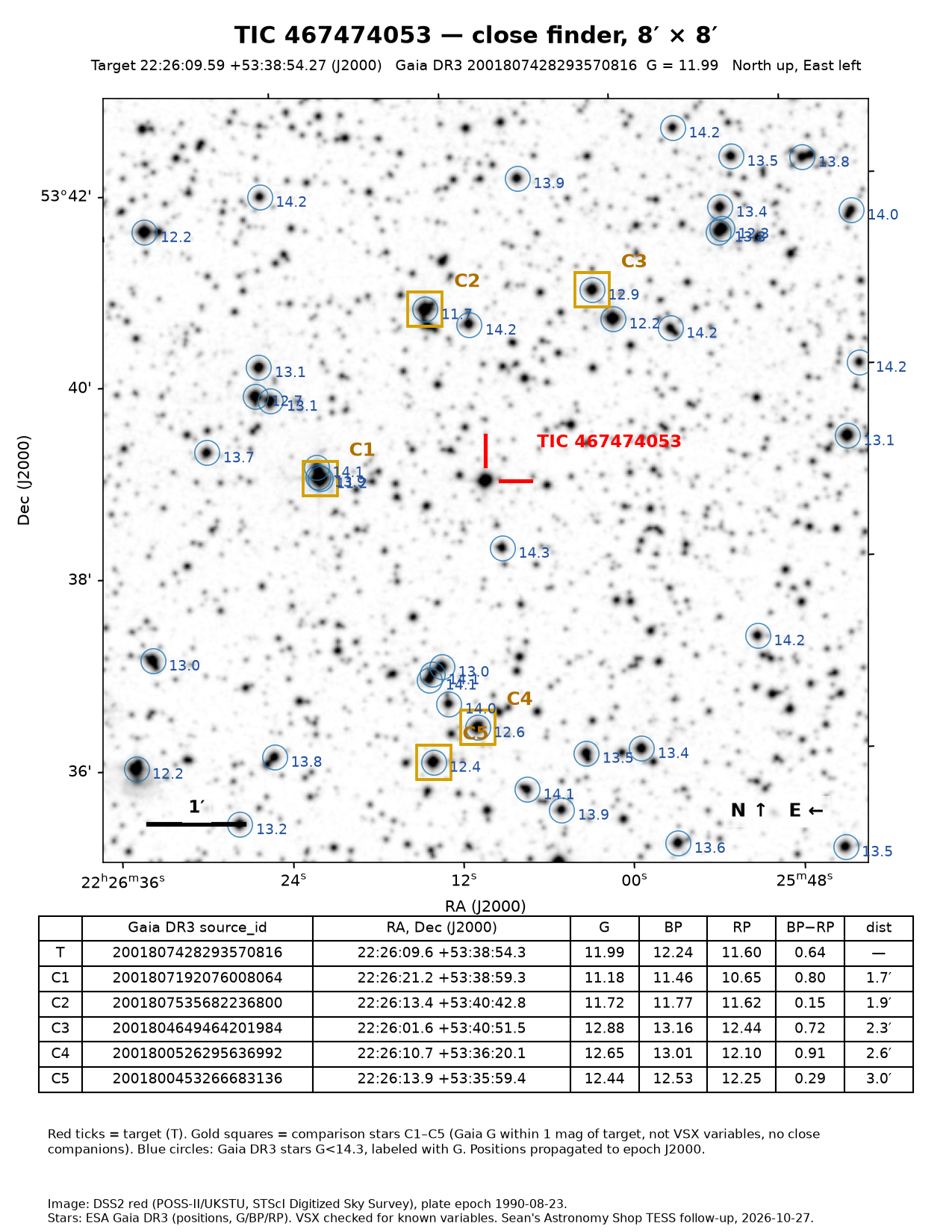

Close finder, 8 × 8 arcmin, to pick out the target.

	Gaia DR3	RA, Dec (J2000)	G	BP	RP	From target
C1	2001807192076008064	22:26:21.2 +53:38:59.3	11.18	11.46	10.65	1.7′
C2	2001807535682236800	22:26:13.4 +53:40:42.8	11.72	11.77	11.62	1.9′
C3	2001804649464201984	22:26:01.6 +53:40:51.5	12.88	13.16	12.44	2.3′
C4	2001800526295636992	22:26:10.7 +53:36:20.1	12.65	13.01	12.10	2.6′
C5	2001800453266683136	22:26:13.9 +53:35:59.4	12.44	12.53	12.25	3.0′

Comparison stars are within about 1 mag of the target in Gaia G, have similar color, no close companion, and no VSX entry within 10 arcsec. Images: DSS2 red (POSS-II, STScI Digitized Sky Survey). Stars: ESA Gaia DR3.

VSX

Not filed. The period is measured, the star 114 arcsec away stays at full light, and the centroid shift is inside the scatter. It waits while TIC 330739083 is the one star in review.

Next two eclipses

Eclipse 1Secondary minimum, the shallower one. 2 Nov 2026, 02:40 UTC · 1 Nov, 18:40 PST Pacific · 2 Nov, 03:40 CET central Europe
Eclipse 2Primary minimum, the deep one. 3 Nov 2026, 18:28 UTC · 3 Nov, 10:28 PST Pacific · 3 Nov, 19:28 CET central Europe

The deep minimum is 0.19 mag and lasts about 4 hours. The shallower one, about 0.03 mag, falls halfway between. The largest residual is 18 minutes. They have not been checked from the ground.

Help with a measurement

A ground eclipse, with the faint stars inside an arcminute kept out of the aperture, checks that this star is the one fading. Pick a date if you can try.

The note

A 3.317-day eclipsing binary candidate: TIC 467474053 (PDF)

These pages use the public TESS Quick-Look Pipeline and catalog positions. A prediction is not a confirmation. If you observe, write down which star was in the aperture.
